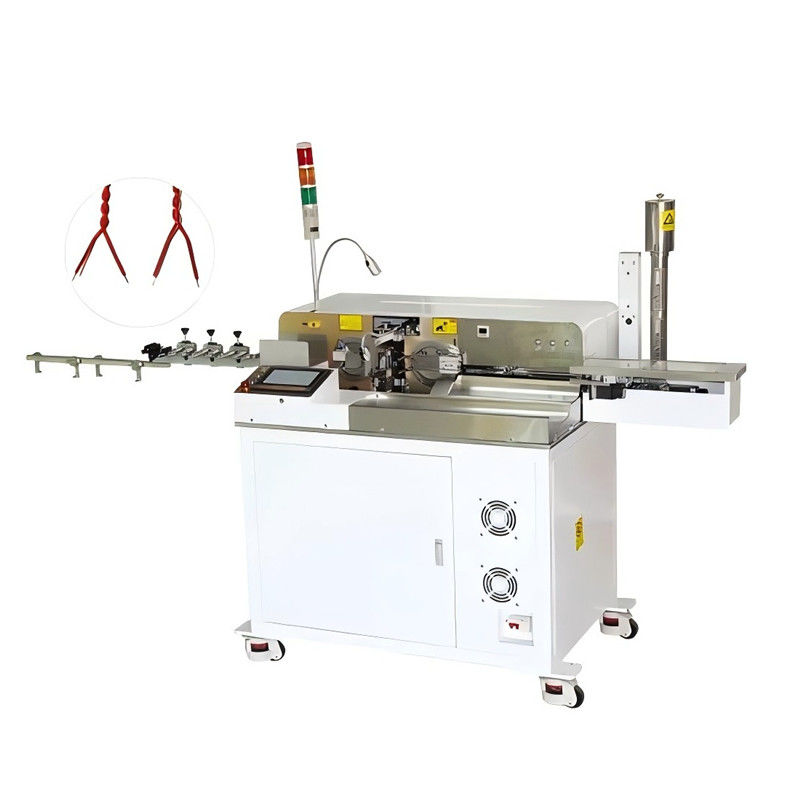

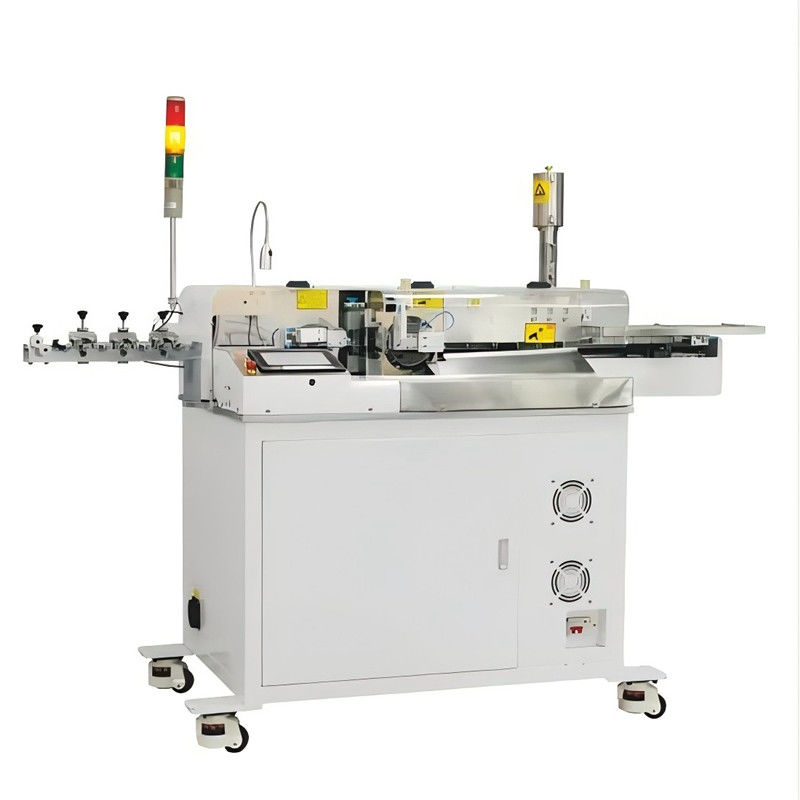

Automatic Double Side Wire Tinning/Soldering Machine

Automatic Double Side Wire Tinning/Soldering Machine is a highly efficient automated machine mainly used for tinning and soldering both sides of wires. This machine has a wide range of applications in the electronics, electrical, and telecommunications industries, and can significantly improve productivity and product quality.

Working Principle

The machine performs precise cutting, stripping, tinning and soldering operations on wires by means of an automated mechanical structure and an electronic control system. Specific processes may include:

Wire pre-processing: Firstly, the machine pre-processes the incoming wires, including cutting them to the required length and stripping off the insulation.

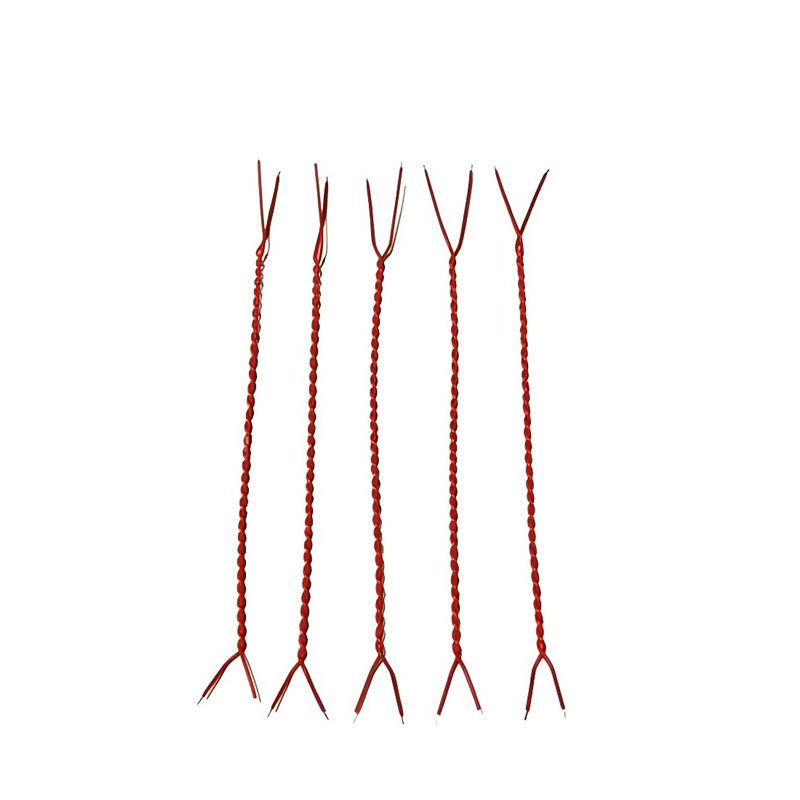

Tinning: Next, the exposed portion of the wire is tinned. Tinning enhances the conductivity and corrosion resistance of the wire and improves soldering quality.

Soldering: Finally, the tinned wire is soldered, usually by heating the solder and melting it onto the wire's joints to form a reliable electrical connection.

Main Features

Fully automatic operation: the machine is capable of fully automatic operation process, reducing manual intervention and improving production efficiency and consistency.

High-precision processing: Advanced control system and precise mechanical structure are adopted to ensure the accuracy and quality of tinning and soldering.

Efficient production: capable of handling multiple wires at the same time, significantly increasing production efficiency and meeting the demands of mass production.

Easy maintenance: compact machine structure and reasonable design, easy for daily maintenance and repair.

Application Scenarios

This machine is widely used in the following scenarios:

Electronic manufacturing industry: for soldering component pins on circuit boards, connecting wires, etc.

Electrical industry: tinning and soldering of wires in electrical equipment and control systems.

Communication industry: In the manufacturing process of communication equipment, signal wires, power wires, etc. are processed.
